12U Adjustable Open Frame 4 Post Rack

180-5252

Features

  • Complies with EIA-310 standards
  • 132 lb (60 kg) weight capacity
  • Constructed from SPCC cold rolled steel
  • Vented top for air flow
  • Reversible door
  • Mount for 120mm fans
  • Adjustable mounting depth from 2.5" (63.5mm) to 17" (432mm) deep

Secure but Accessible

  • Removable side panels with lock
  • Glass door with lock

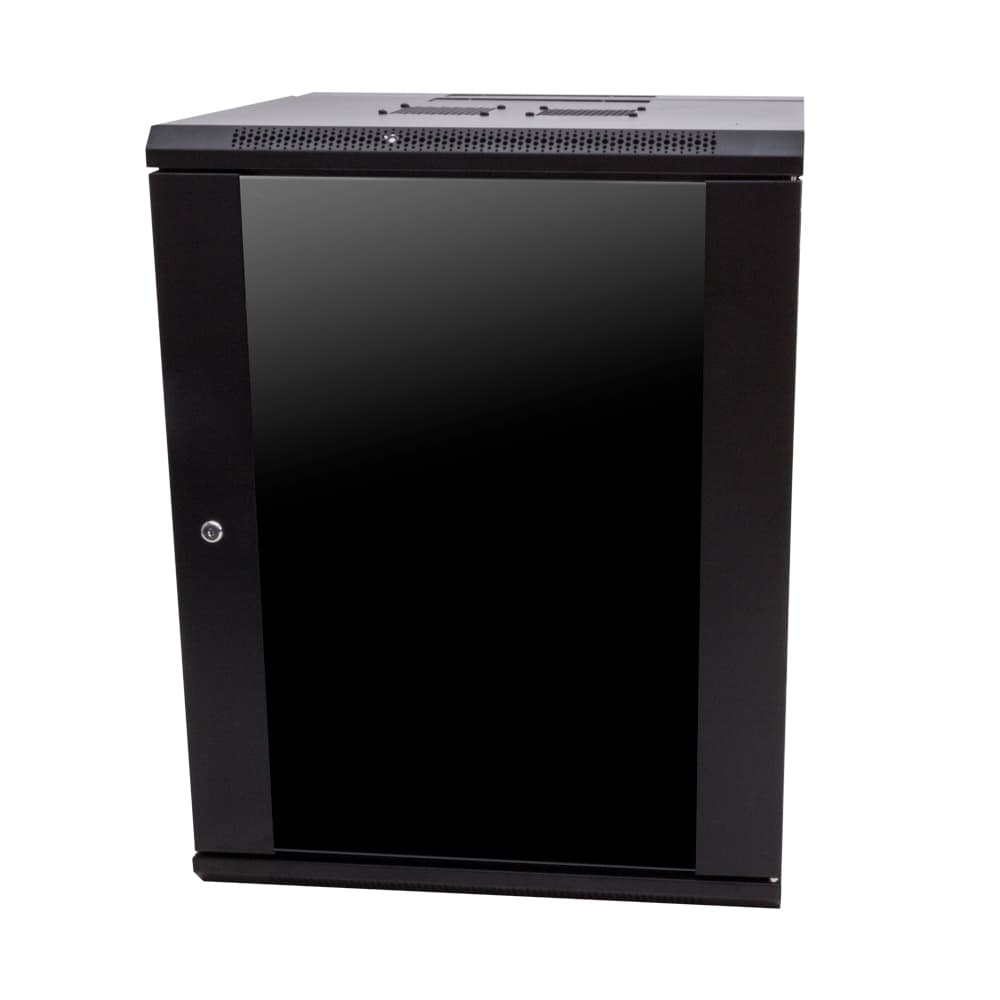

The 12U Wall Mount AV Rack is designed to offer a secure and space saving option for AV equipment that can be mounted on the wall or the floor. The cabinet is constructed with SPCC cold rolled steel and designed with a strong welded frame which allows a static load of 132 lbs.

The Wall Mount features adjustable uprights that also allow side mounted equipment. The rack also comes loaded with removable side panels and a glass door, both which can be locked. This cabinet also comes with side vents, as well as a top vent that allows users to mount 120 mm fans. The Wall Mount Rack is compatible with all standard 19" equipment, and meets EIA-310 standards. All hardware for the 12U Wall Mount AV Rack is included and ships fully assembled.

Rack Height9U-16U
External Width600mm (23.6")
RoHS ComplianceYes
Rack TypeEnclosed Wall Rack
HardwareIncluded
Tech NotesNo
Rack Depth600mm Wall Mount Rack
