16U AV Equipment Rack

P/N: 111-2258

  • Control systems, Amplifiers, AV receivers, Equipment drawers
  • 24" (610 mm) deep
  • 24" (610 mm) wide
  • 3000 lb (1360 kgs) static load capacity
  • 1200 lb (544 kgs) load capacity on casters
  • Quick and easy assembly
  • EIA 3/8" (9.5 mm) square hole
  • Meets EIA-310 standards
  • UL certified
  • RoHS compliant

All of our open frame racks are made in the USA and ship the same day via UPS. Assembly hardware included.

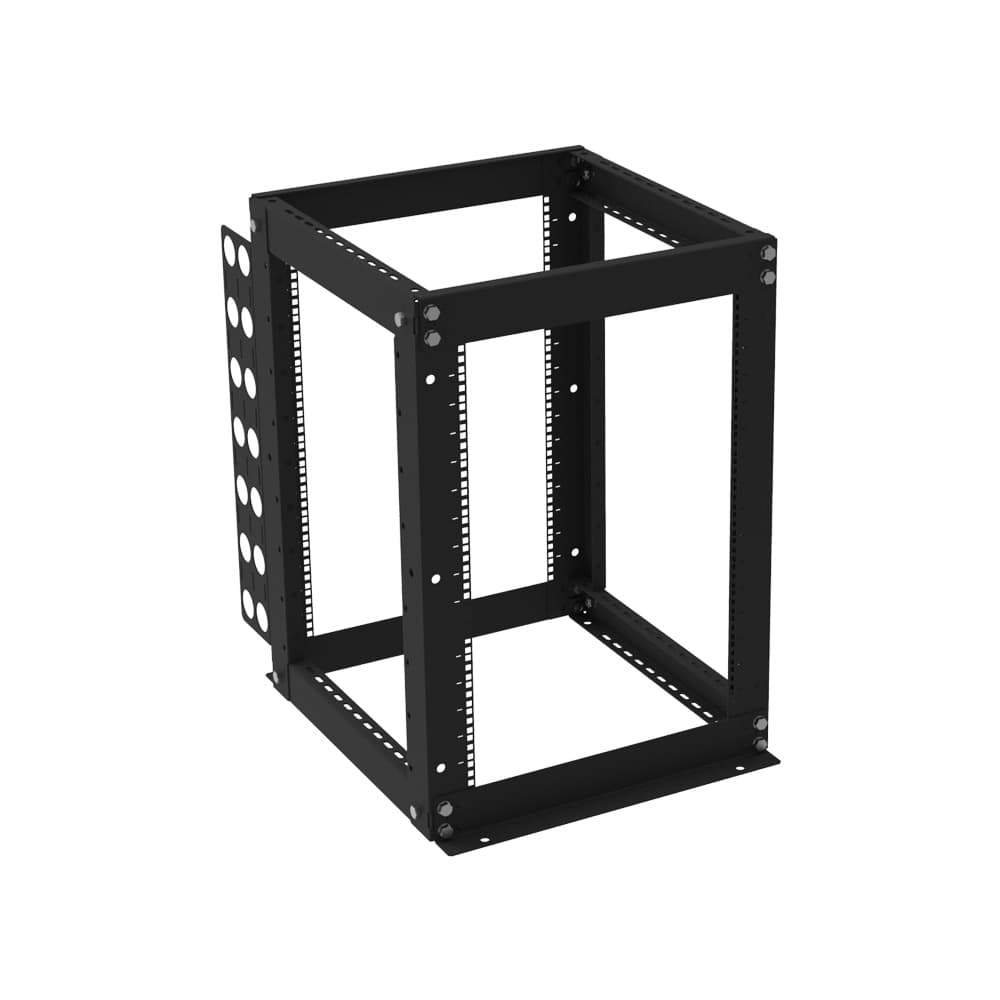

The 16U AV Equipment Rack stands 34.25” tall, 24" deep, and 24" wide and can rackmount EIA-standard 19 inch equipment. It's heavy duty steel construction allows a maximum load capacity of 3000 lbs. This open frame rack is designed to rackmount audio/video equipment such as AV receivers, microphone systems, amps, and equipment drawers. The open frame design allows unobstructed airflow and increases accessibility, making equipment installation and maintenance easy. The rack is self squaring, making assembly quick and painless. Optional casters can be purchased separately to allow easy transportation of your rack. A Rack Top is also available separately, which can protect your rack from dust and debris. The 16U AV Equipment Rack meets EIA-310 standards, is UL certified, and RoHS compliant. All hardware is included.

Rack Height9U-16U
External Width19.75"
RoHS ComplianceYes
Rack TypeOpen Frame
HardwareIncluded
Tech NotesN/A
Rack Depth24" AV Equipment Rack
