1U 28" Fixed Heavy Duty Vented Rack Shelf

P/N: 1USHL-116

  • Adjustable mounting depth: 15 - 31.5" (381 - 800 mm)
  • Weight capacity: 500 lbs (226 kgs)
  • Thick 1/8" steel construction
  • Mounts to any 4 Post standard 19" server rack
  • Can center mount 2 Post racks

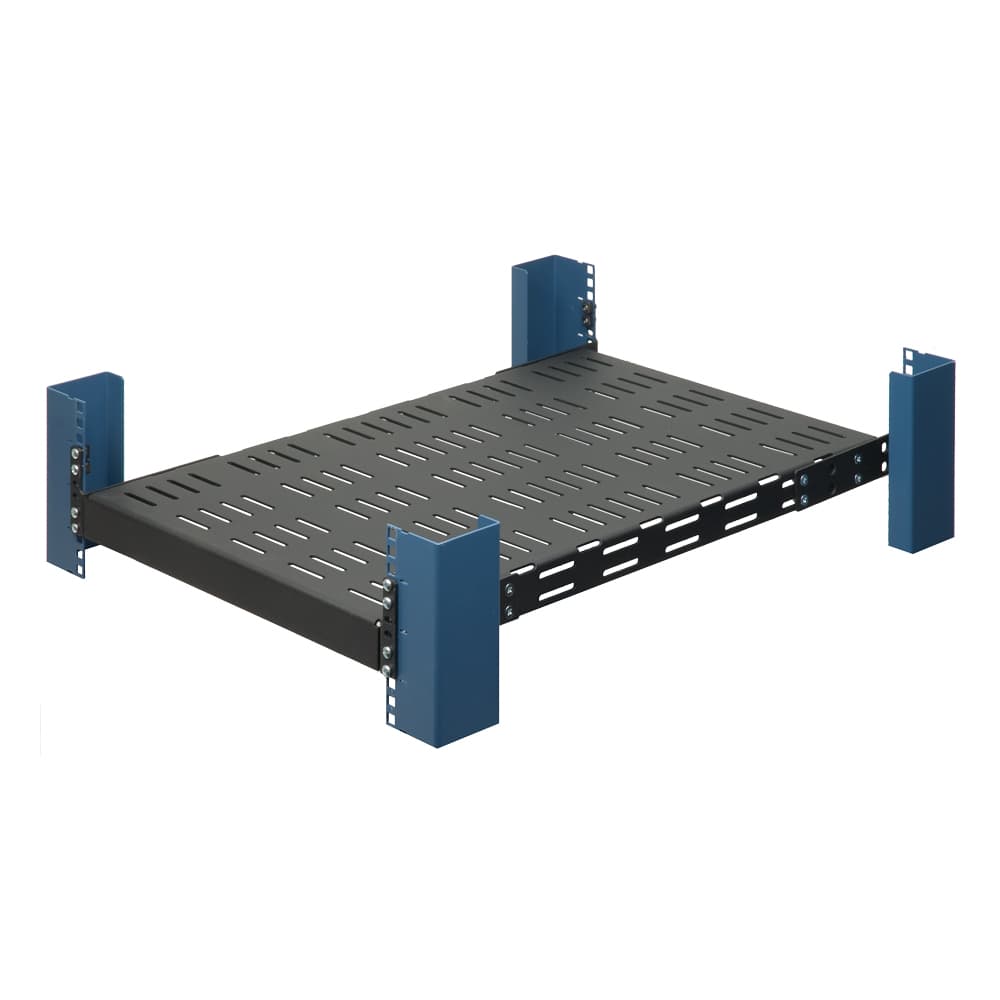

The Fixed Heavy Duty Vented Rack Shelf has adjustable rails and can be installed in 19” server racks and cabinets with square, round, or threaded holes. This 28" rack shelf can rack mount server equipment weighing up to 500 lbs, including large printers, tower servers, and UPS towers, and has an adjustable mounting depth from 15” - 31.5”. The vented rack shelf itself occupies 1U of space, and its support brackets take up an additional 1U of space. The Fixed Heavy Duty Rack Shelf can fit to 4 Post racks, and can also be center mounted to 2 Post racks. The rack shelf is made from 1/8" steel and includes all necessary installation hardware.

Shelf TypeFixed Shelf
Shelf Width19"
Cable Management ArmCMA Not Included
RoHS ComplianceYes
HardwareIncluded
Weight Capacity500lbs
